Watmind SARS-CoV-2 antigen immunofluorescence system
Rapid and reliable antigen immunofluorescence system
- Higher analytical performance compared to conventional antigen rapid diagnostic tests
- Portable instrument with built-in printer
- User-friendly and fast operation antigen rapid diagnostic tests
- Standardised and traceable results in 10 minutes
- Prequalified calibration
- QC material available
Perform the rapid test assay with an instrument and get objective, qualitative results within minutes.
Patient information and results can be stored, reviewed, printed, sent or transferred to LIS.
Fast and reliable point-of-care solution

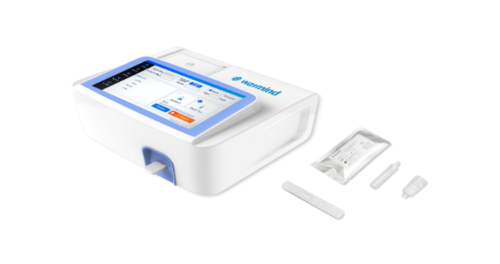

The system consists of a test cartridge, instrument and accessories such as sample collection and QC material.

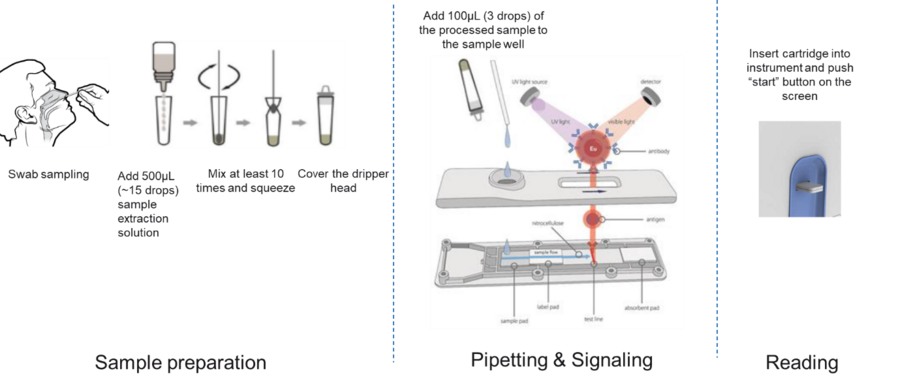

Following the collection of the respiratory specimen, it is applied to the test strip and after the incubation time, results are read via an immunofluorescence instrument.
The use of such a reader standardises and simplifies interpretation of test results between different operators and provides traceable results for documentation.

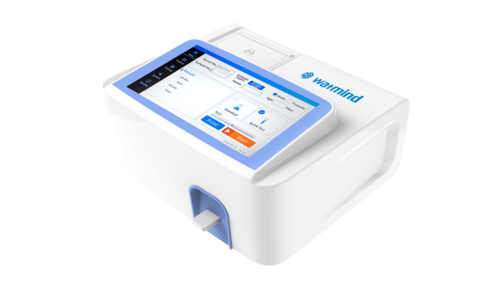

The easy-to-use and portable point-of-care instrument is based on Europium Fluorescence Technology, providing higher sensitivity and delivering printable results in 10 minutes. The reader can be also connected to an external IT device.
Instrument
Technology | Immunofluorescence analyser |
Instrument size | 240*205*115 mm |
Instrument weight | 1.5 kg |
Instrument features | 18 cm touch screen, printer, lot ID chip |
Time to result | 10 minutes |
Interfaces | USB, COM, Internet (LIS), Wi-Fi |
Power supply | AC100-240V, 50/60Hz |
Test cassette
Technology | Lateral flow sandwich immunoassay |
Sample type | Nasopharyngeal and oropharyngeal swab |
Buffer volume | 500 µl (15 drops)/ test |
Sample volume | 100 µl (3 drops)/ test |
Sensitivity | 90.8% (RT-PCR CT value ≤ 36) |
Specificity | 99.1% |
Packaging specification | 25 tests/ kit |
for more details please refer to the IFU
