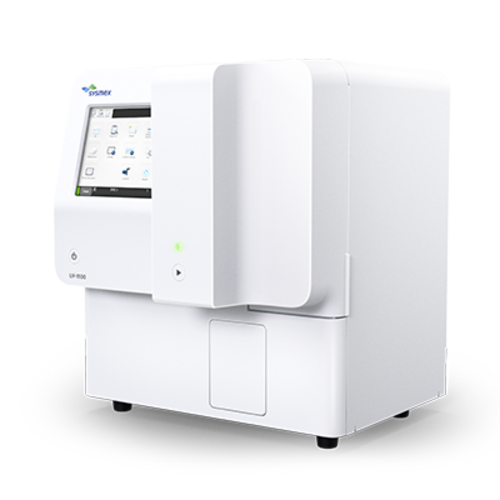

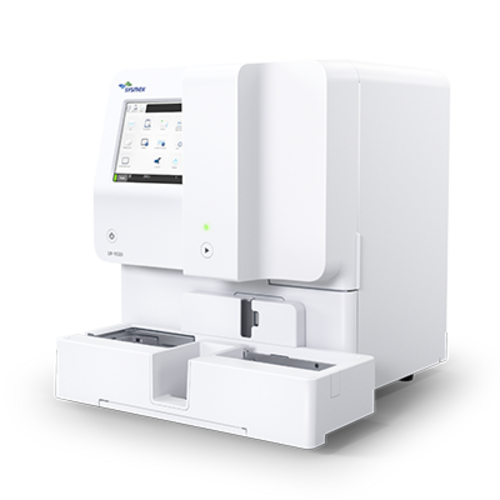

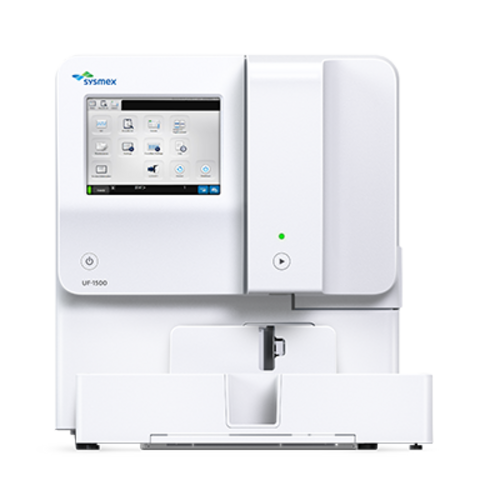

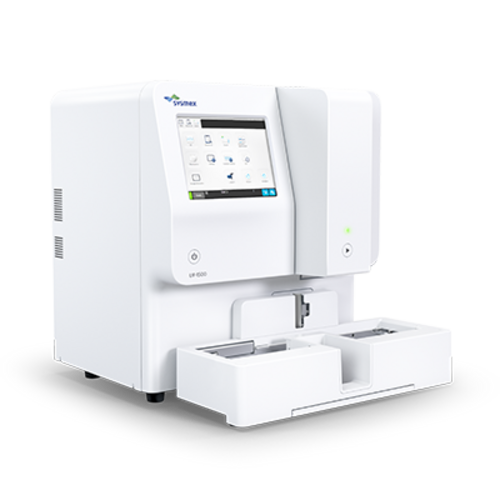

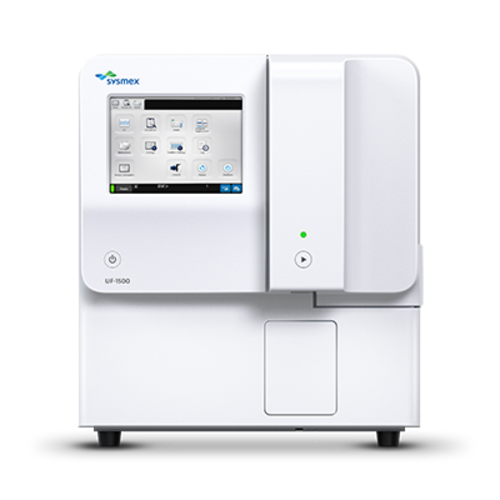

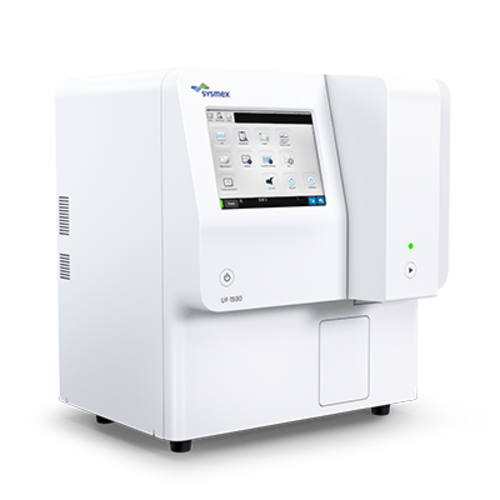

UF-1500
Fully Automated Urine Particle Analyser
- Compact size
- Fast and reliable particle analysis with fluorescence flow cytometry
- Advanced parameters to support clinical decision making
- Automate and standardise manual workflow procedures
- Flexible configuration options to find your perfect match
Proven technology, compact size: the UF-1500
As an ideal solution for small to medium sized labs, the Sysmex UF-1500 Fully Automated Urine Particle Analyser is roughly 30% smaller than our flagship UF-5000 model while delivering high-quality and reliable results using our proven fluorescence flow cytometry (FFC) technology.
The right choice for your workflow
Sysmex's FFC technology, along with automation features, barcode identification and modularity, make the UF-1500 an excellent option to streamline workflows and provide more accurate results. Choose Sysmex for your lab to take advantage of cutting-edge, versatile design based on proven technology, combined with unparalleled support.
| Dimensions / weights W x H x D [mm / kg] | analyser: approx. 550 × 630 × 560/52 main unit (incl. SA-52): 630 × 630 × 626/60 pneumatic unit: 280 × 400 × 355/17 |
| Technologies | fluorescence flow cytometry with blue semi-conductor laser and hydrodynamic focussing in two different channels conductometry |
| Parameters (urine) | Diagnostic Research Use Only (RUO) |
| Throughput | 60 samples/hour (max.) |
| Sampling volume | 2 mL (sampler mode), 0.6 mL (STAT mode) |
| Aspiration volume | 680 μL (sampler mode), 520 μL (STAT mode) |
| Sampler unit capacity | 50 samples (entry area), 50 samples (exit area) |
| Interface (optional) | U-WAM |
| Web application (optional) | Caresphere™ XQC |
