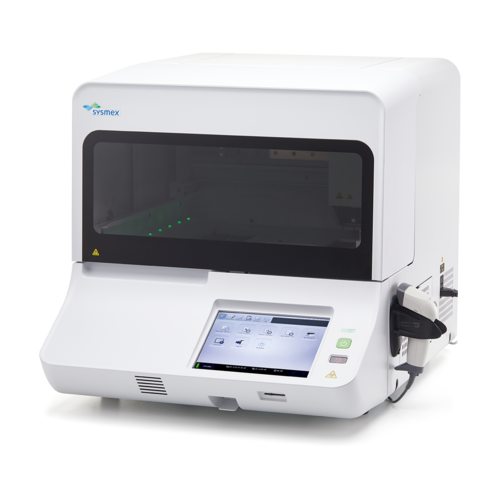

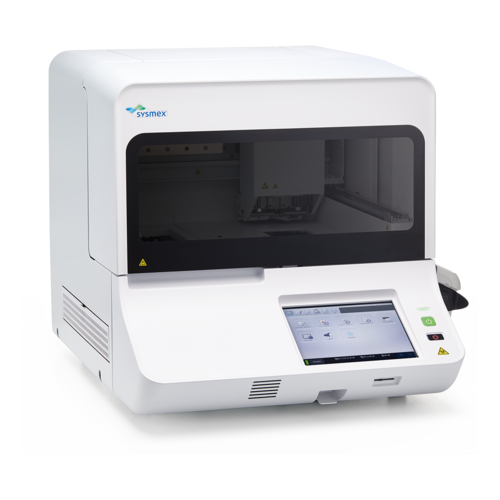

RD-210
OSNA gene amplification detector
- Short TAT (~30 min up to 14 samples) – most of it as walk-away time
- High flexibility (intra-op and post-op usage; pan-cancer and multi-patient)
- Easy to operate, user-friendly integrated touchscreen
- Easy integration into a quality-controlled laboratory environment
OSNA – One Step Nucleic Acid Amplification – is an automated rapid molecular diagnostic test for the detection of lymph node (LN) metastases. It analyses the entire LN tissue using a reverse transcriptase loop-mediated isothermal amplification reaction (RT-LAMP*) to quantify tumour-specific cytokeratin 19 (CK19) mRNA expression in LNs.
The analyser to perform OSNA is a compact device, the RD-210. It is an easy to handle smooth process demanding few resources. Lymph node tissue from different patients or cancer types can be processed simultaneously, delivering results of up to 14 lymph nodes in a single run. If needed, it can provide quick results in an intraoperative setting.
* licensed under the agreement with Eiken Chemical CO., LTD
DETECTION CELL (cat #05437818) is an accessory for the OSNA automated molecular diagnostic test. It is composed of minute reaction chambers where nucleic acid amplification takes place.
PIPETTE TIP (cat #05437711) is an accessory to the OSNA automated molecular diagnostic test. Composed of volumetric filtered pipette tips for the automatic liquid handling of minute volumes of reagents and samples inside the RD-210.
RD Sample Vial (cat #BP675300) is an accessory to the OSNA automated molecular diagnostic test. Composed of 1.5 mL polypropylene vials for temporary sample storage.
| Article number | CP437283 |
| Measurement Principle | In the presence of CK19 RNA, Magnesium pyrophosphate precipitates during the amplification process, causing a white turbidity. The instrument measures the amount of light transmitted through the sample and calculates the copy number. |
| Technology | RT-LAMP = Reverse transcriptase loop-mediated isothermal amplification; licensed under the agreement with Eiken Chemical CO., LTD |
| Throughput | 2 sample analysis/run: within 16 min. 12 sec. |
| Dimension | W600 mm x D780 mm x H610 mm |
| Weight | ~ 90 kg |
| Reagents | LYNOAMP CK19 E |
| Disposables | DETECTION CELL PIPETTE TIP RD Sample Vial |
| Parameter | CK19 mRNA copies/µl |
