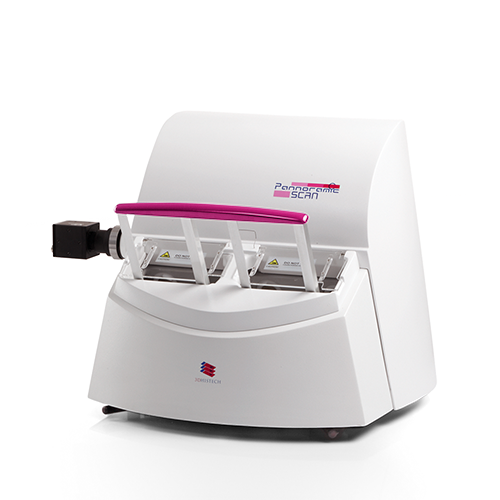

The Pannoramic SCAN II is the perfect solution for medium to large-scale laboratories. With a loading capacity of 150 slides and the option to load new specimens continuously, this compact slide scanner can handle the sample volumes of even larger-scale laboratories. In addition to bright-field illumination, the Pannoramic SCAN II can also scan fluorescence sections. As a result, you can perform diverse analyses of various tissue section types in the same laboratory with a single scanner.

Speed
With a scan speed of 90 seconds per slide, the Pannoramic DESK II, MIDI II and SCAN II slide scanners are amongst the fastest on the market.

Quality
All Pannoramic slide scanners provide unique image quality. This is achieved through effective synergy between the camera, the objectives (20x or 40x) and the modern software, and – depending on the camera configuration – provides up to 110x resolution (interpolated) for bright-field and up to 90x resolution (interpolated) for fluorescence microscopy.

More details

Pannoramic control software – included

The Pannoramic control software is the user interface to control your Pannoramic slide scanner. This software supports your daily work processes and the handling of the Pannoramic SCAN II.

To optimise the workflow, all scanners automatically detect the specimen, focus on the tissue and create a preview on the screen. A photograph of the slide label is also created or its barcode is read. This supports archiving, saves time and reduces costs.

Easy to use
Choice of manual or automatic scan mode
Automatic tissue detection
Automatic focus
Photograph of the slide label for documentation
Optional barcode detection

CaseViewer – included

The CaseViewer is pre-installed on the computer linked to the slide scanner. This software not only allows the digitised tissue specimen to be viewed, but also offers a wide range of processing options. You can create markings, add comments and view several tissue specimens in parallel in different stainings, to name but a few of the features. To put it simply, the CaseViewer is your gateway to the world of virtual pathology.

Technical specifications

Technology	Bright-field / 9-channel fluorescence (optional) Objectives: 20x or 40x (optional) Barcode scan: 1D and 2D Bright-field illumination: 3-channel LED Fluorescence illumination: Lumencor light engine Certification: CE, IVD
Resolution and magnification	5-MP basic high-performance CMOS (bright-field and fluorescence): Resolution with the 20x objective and C-mount adapter 0.63x: 0.27 μm (37x) Resolution with the 40x objective and C-mount adapter 0.63x: 0.14 μm (73x) Resolution with the 20x objective and C-mount adapter 1.0x: 0.17 μm (58x) Resolution with the 40x objective and C-mount adapter 1.0x: 0.09 μm (116x) 4.2-MP scientific CMOS (bright-field and fluorescence): Resolution with the 20x objective and C-mount adapter 1.0x: 0.33 μm (31x) Resolution with the 40x objective and C-mount adapter 1.0x: 0.16 μm (62x) Resolution with the 20x objective and C-mount adapter 1.6x: 0.20 μm (45x) Resolution with the 40x objective and C-mount adapter 1.6x: 0.09 μm (90x)
Capacity	Slide capacity: 150; option of continuous loading Accepted slide formats: 25 x 75 mm, 0.9 to 1.2 mm thickness
Digital storage	3DHISTECH format (MRSX), can be coded for JPG, JPG2000
Scan speed 15 mm x 15 mm (bright-field, 20x objective)	0.27 µm / pixel (0.63x adapter, 5-MP CMOS): 2 min 30 sec 0.17 µm / pixel (1.0x adapter, 5-MP CMOS): 5 min 30 sec 0.27 µm / pixel (1.0x adapter, 4.2-MP scientific CMOS): 4 min
Dimensions (W x D x H)	Pannoramic SCAN II: approx. 74 cm x 53 cm x 45 cm Computer: approx. 20.5 cm x 39 cm x 39.5 cm Mains adapter (24V): approx. 17 cm x 30 cm x 11 cm
Weight	Approximately 26 kg
